Ectasia Corneal

Ectasia

How it works

A lens with sag and 9mm chord markings

Depth-based fitting

The EyeSpace® Ectasia Corneal uses sagittal depth (SAG) rather than curvature, allowing fitting in three simple steps:

  1. match the central back optic zone,
  2. match the lens SAG to the corneal height at the 9.00 mm chord, and
  3. specify edge lift.

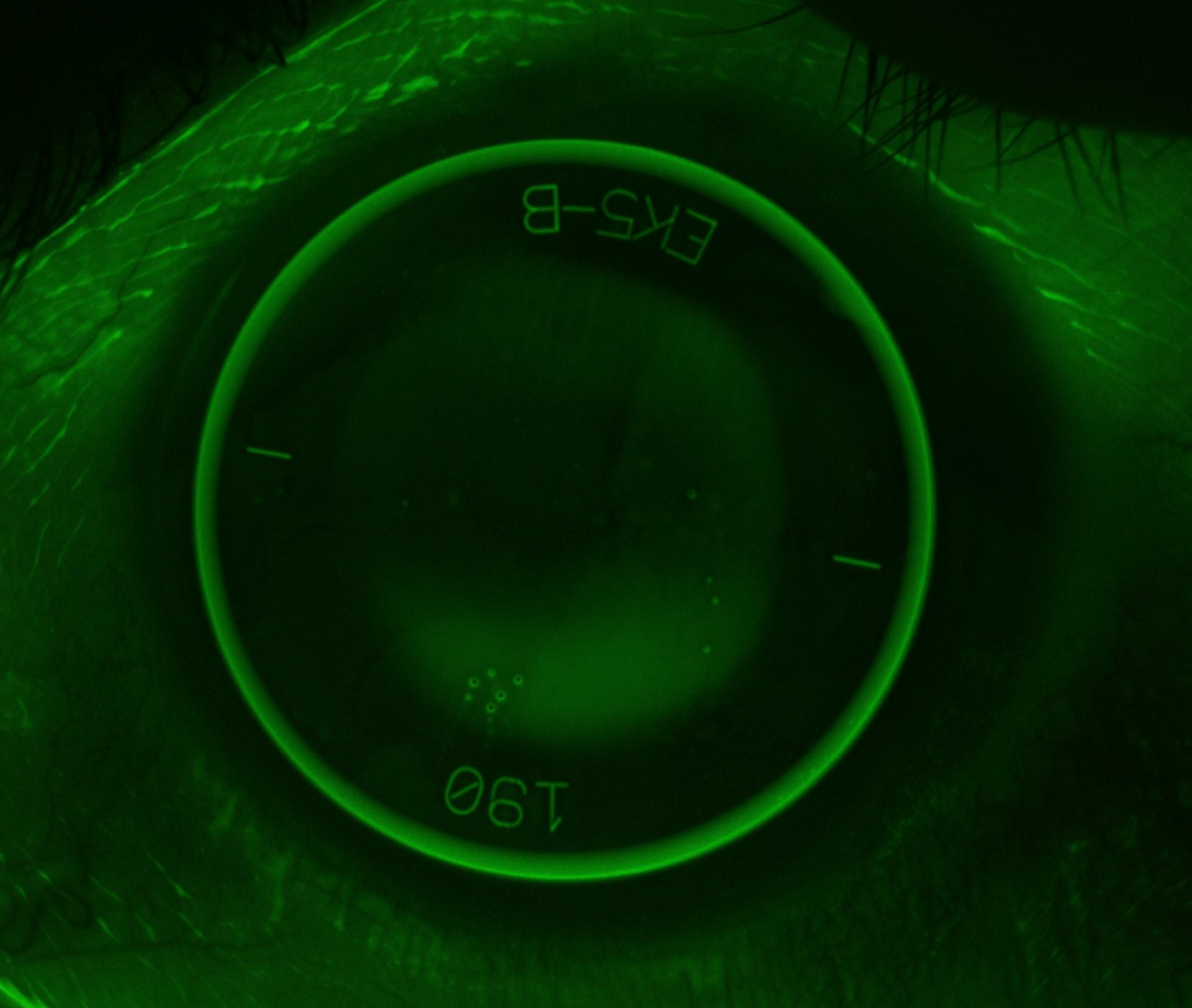

An EyeSpace® Ectasia lens on the eye with NaFl staining.

The EyeSpace® Ectasia lens

An integrated online calculator automatically generates an optimised lens design (including BVP calculations) from your clinical assessment of a trial lens or existing lens with known parameters.

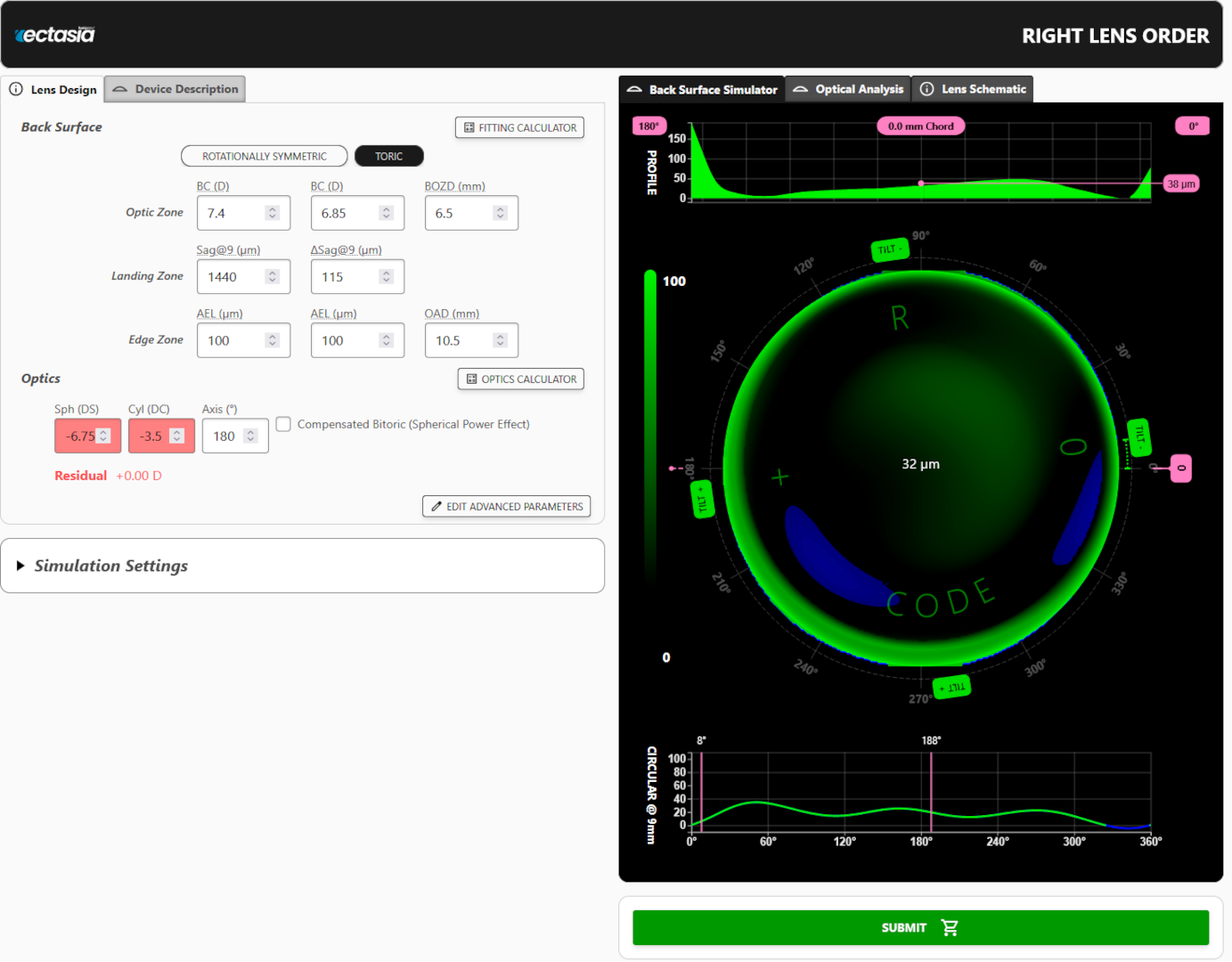

Screenshot of EyeSpace® Ectasia Calculator displaying inputs as a simulation of the lens on the eye

The EyeSpace® Ectasia Calculator

Customisable parameters

Anatomy of an EyeSpace® Ectasia Corneal lens
Ectasia Corneal Lens Parameters (subject to variability)
ParametersValues
Back Optic Zone Radius (r0)(Spherical or toric)
4.50–15.00 mm
Back Optic Zone Diameter (⌀0)5.00–8.00 mm
Sagittal Depth @ 15.00 mm (SAG)1,000–3,000 µm
Sagittal Toricity @ 15.00 mm (ΔSAG)30–600 µm
Axial Edge Lift(lAE)50–250 µm
Overall Diameter (⌀T)10.00–12.00 mm
Back Vertex Power(F′v)-30.00 – +30.00 DS,
up to -20.00 DC
Spherical Aberration (SA)-2.00 – +2.00 D
