Forge® Ortho-K
How it works
Orthokeratology (also known as ortho-K) is a non-surgical, reversible treatment for refractive error. Ortho-K lenses are only worn while sleeping. Through hydrostatic (fluid) forces, the lenses remould the corneal epithelium and change the anterior curvature of the cornea to enable clear, unaided vision during waking hours.

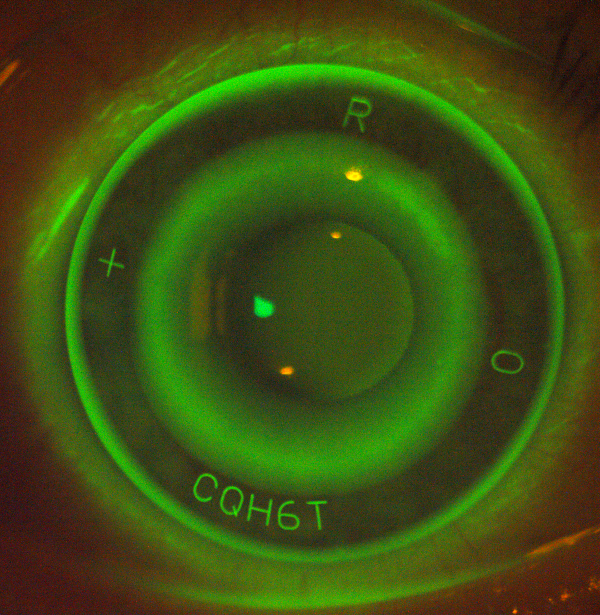

EyeSpace® Forge® Ortho-K with easy-to-find engravings

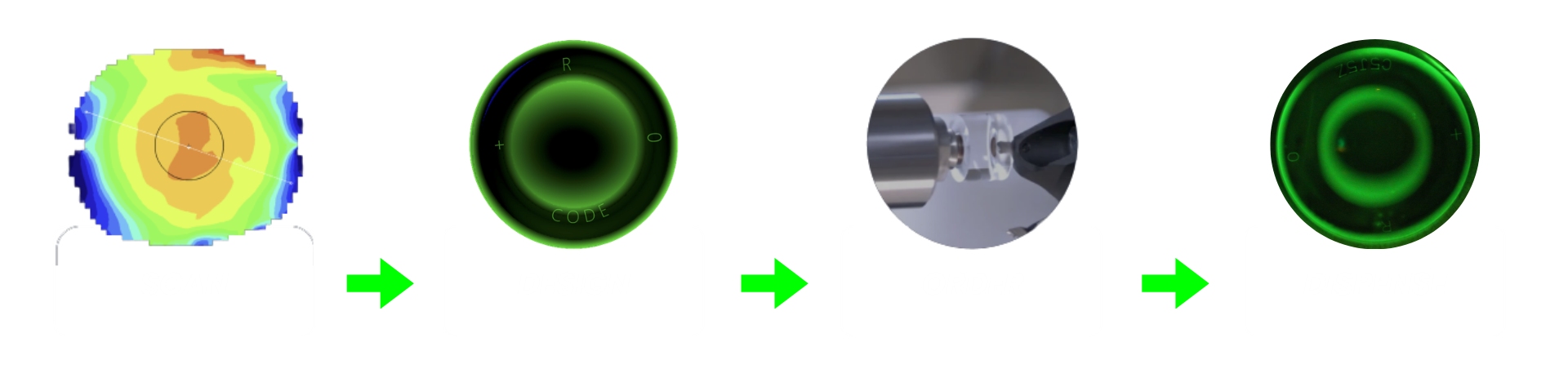

EyeSpace® uses advanced algorithms to craft each Forge® Ortho-K lens from a map of the eye, delivering a custom fit that’s as precise as a fingerprint. This eliminates the need for trial fitting and maximises first-fit success in simple and complex cases.
Make it your own

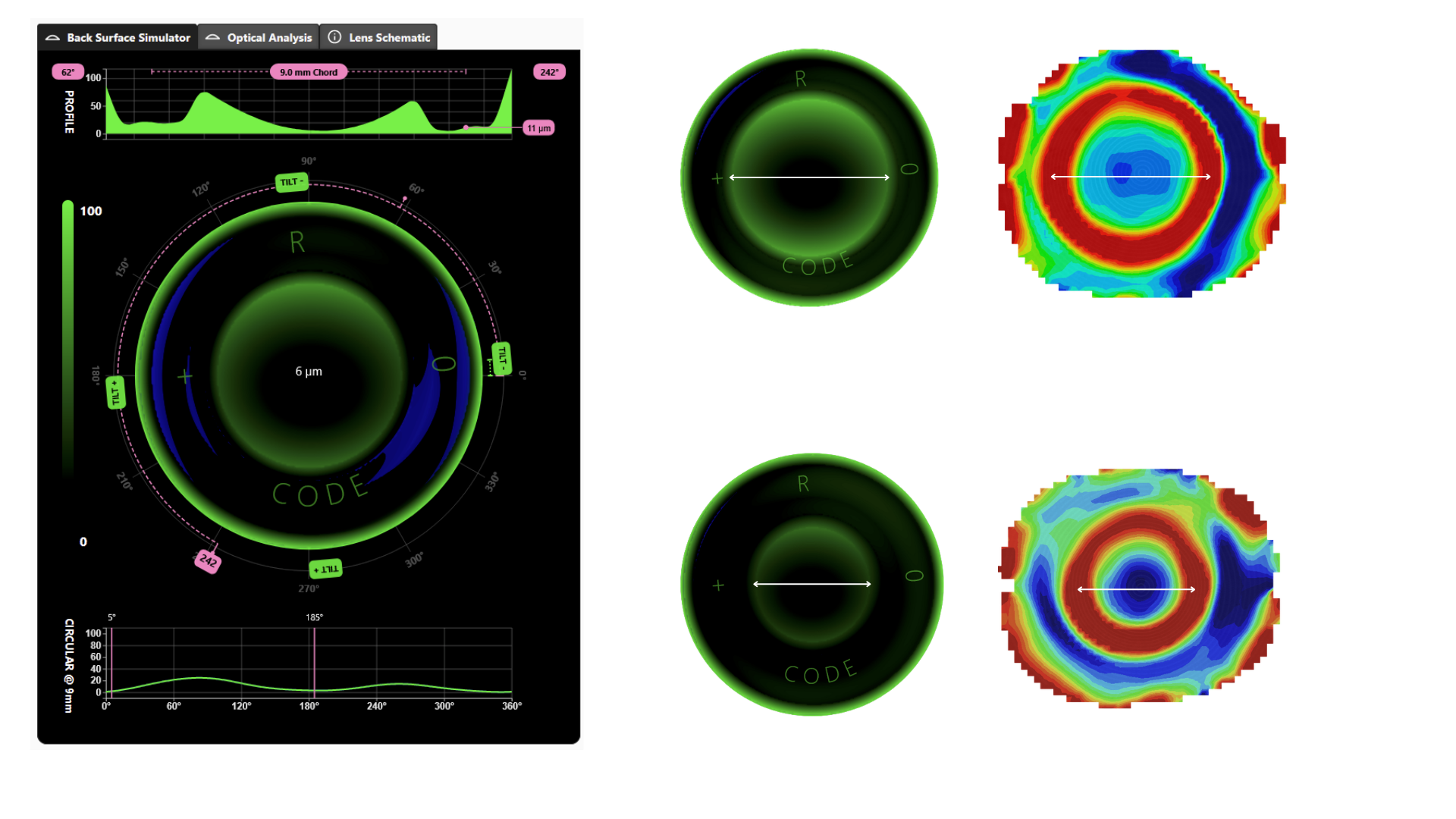

With Forge® Ortho-K, the Back Optic Zone Diameter and Treatment Zone Diameters are independent and fully customisable. Optimise vision correction for young adults and presbyopes, or prioritise myopia management in children.
Match the lens to the shape of the cornea with spherical, toric or quadrant-specific peripheries. The better the match, the better the seal, which creates greater hydrostatic forces and improved correction - especially for astigmatism.
Customisable parameters
| Parameters | Values |
|---|---|
| Back Optic Zone Radius (r0) | (Spherical or toric) 6.50–8.00 mm |
| Back Optic Zone Diameter (⌀0) | 4.50–7.00 mm |
| Back Optic Zone Eccentricity (e0) | 0.0–1.5 |
| Back Vertex Power(F′v) | -3.00 – +3.00 DS, up to -3.50 DC |
| Treatment Zone Diameter (⌀1) | 6.00–8.00 mm |
| Landing Zone Angle (θ2) | 28–40° |
| Overall Diameter (⌀T) | 10.00–12.00 mm |
| Sagittal Depth @ 9.00 mm (SAG) | 1,200–1,700 µm |
| Sagittal Toricity @ 9.00 mm (ΔSAG) | 0–150 µm |
Our suite
Getting started
We can help get you set up on our online platform. If you already have an account with us, you can simply log in, start restoring vision and changing people's lives.
